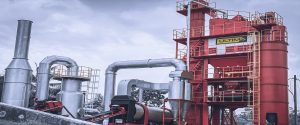

  • Project Name: Asphalt Mixing Plant
  • Brand: ULTIMA™
  • Location: Bekasi, Indonesia
  • Value: Call Us
  • Links: wahanaagfa.co.id

Feature

LB Series Asphalt Mixing Equipment is one of the products in the series of Zoomlion’s LB-type mixing equipment. Mandatory intermittent mixing technique is adopted and modular design is used to facilitate assembly and transportation. Endowed with the world’s advanced technical performance, the product can output high-quality asphalt mixture under various environments and conditions. It features accurate measurement, advanced control, energy conservation and environmental protection, thus being widely used in the construction of high-level roads, airports, wharfs and municipal roads.

Zoomlion Side-placed Asphalt Mixing Plant Series:
LB2000、LB3000、LB4000
–Large capacity of mixed materials’ storage bin and easy site-transfer, assembly and disassembly
Zoomlion Underlying Asphalt Mixing Plant Series:
LBX3000、LBX4000
–Smooth operation, good anti-segregation effect, optimal land utilization and small power of complete machine
Zoomlion Container-type Asphalt Mixing Plant:
LBJ2000
–Easy container transportation, convenient export and optimal land utilization
Zoomlion Asphalt Mixing Plant Heat Regeneration Equipment:
LRB2000
–Compatible to main asphalt mixing plant products on the market and environmentally-friendly

Parameter :

Model Unit LB2000/LBJ2000
Mixing    capability Kg/batch 2000
Rated    productivity t/h 160
Temperature    of finished material °C 130-200
Temperature    control error °C ± 3
Fuel    consumption kg/t (materials) ≤    6.3
Measurement
error
Aggregate (static /    dynamic) % ≤±    0.5% / ± 2.0%
Powder (static / dynamic) % ≤±    0.3% 1 ± 2.0%
Asphalt (static / dynamic) % ≤±    0.1%/ ± 1.0%≤20
Exhaust    dust concentration mg/Nm3
Noise    of operation station dB(A) ≤70
Total    installed power kW 430/390
Notes LBJ    and LBX represent container-type asphalt plant and asphalt plant with    underlying mixed materials’ storage bin respectively.
Coal    or natural gas burners are optional.
